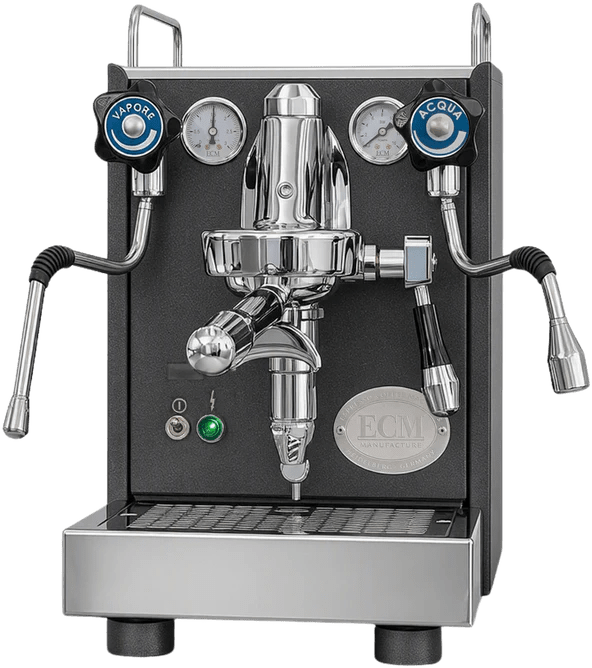

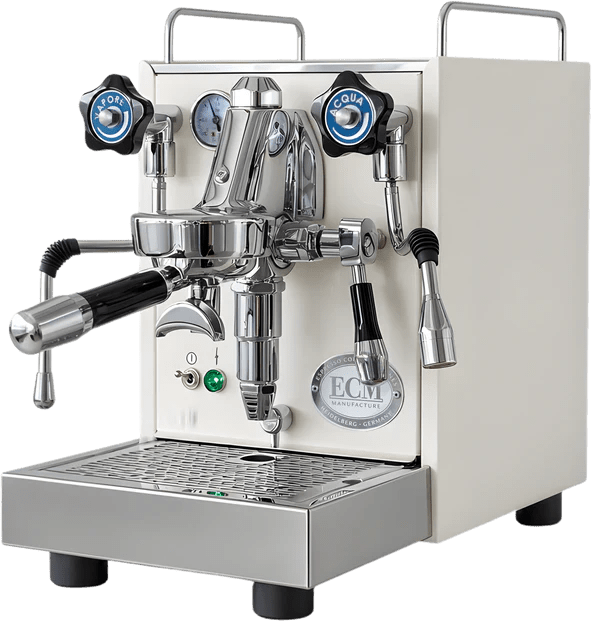

ECM - Mechanika Slim PID Espresso Machine

Professional heat-exchanger performance in a remarkably slim footprint.

The ECM Mechanika Slim PID is a premium semi-automatic espresso machine designed for home baristas who want strong steam performance, precise temperature management and classic ECM build quality without giving up unnecessary counter space.

Its 1.9 L stainless-steel heat exchanger boiler allows espresso brewing and milk steaming within the same workflow, while PID control, programmable pre-infusion, ECO mode and a discreet display give you useful control without taking away from the machine’s traditional appearance.

Compact 25 cm-Wide Design

At only 250 mm wide, the Mechanika Slim PID is designed to deliver serious prosumer performance in kitchens and coffee stations where counter space is limited.

1.9 L Stainless-Steel Heat Exchanger Boiler

The 1.9 L stainless-steel boiler uses a heat exchanger system, allowing the machine to brew espresso and produce steam without the workflow limitations of a conventional single-boiler machine.

PID Boiler Temperature Control

The PID system provides electronic control of boiler temperature for both espresso and steam performance. Three selectable temperature settings of 120°C, 124°C and 128°C make it easy to adapt the machine to different coffees and preferred steam performance.

Discreet Integrated Display

A compact display keeps the traditional ECM aesthetic intact while showing useful information such as espresso extraction time, pre-infusion status, ECO mode, temperature unit and an empty-water-tank warning.

Built-In Shot Timer

During extraction, the display shows espresso shot duration in seconds, making it easier to monitor and repeat your espresso recipes.

Selectable Pre-Infusion

Pre-infusion can be switched on or off through the machine settings, giving you additional flexibility when dialing in different coffees.

ECO Mode

The integrated ECO mode helps reduce unnecessary energy use during periods when the machine remains idle.

Low-Noise Vibration Pump

ECM uses a low-noise vibration pump to provide the pressure required for espresso extraction while helping keep operation quieter than a conventional vibration-pump design.

Classic ECM Brew Group

The substantial ECM brew group provides the traditional lever-operated workflow, thermal mass and professional feel associated with ECM’s prosumer machines.

Adjustable Brew Pressure

An easily accessible expansion valve allows brewing pressure to be adjusted without major disassembly, giving experienced users another way to fine-tune machine setup.

Dual Pressure Gauges

Separate pump and boiler pressure gauges provide real-time feedback during brewing and steaming.

2.8 L Removable Water Tank

The removable 2.8 L reservoir provides generous capacity for home use without requiring a direct plumbing connection.

Classic Rotary Valves with Deep Blue Accents

Traditional rotary steam and hot-water valves are finished with distinctive deep blue accents, giving the Mechanika Slim PID a subtle visual identity while preserving ECM’s classic stainless-steel styling.

Removable Cup-Warming Tray

The top cup-warming surface can be removed for easier access to the water reservoir and simplified machine maintenance.

Key Features

• Compact heat exchanger espresso machine
• 1.9 L stainless-steel boiler
• PID boiler temperature control
• Three selectable boiler temperatures: 120°C, 124°C, 128°C
• Discreet integrated display
• Espresso shot timer
• Selectable pre-infusion
• Selectable ECO mode
• Low-noise vibration pump
• ECM brew group
• Traditional rotary valves
• Deep blue valve accents
• Pump pressure gauge
• Boiler pressure gauge
• Easily accessible expansion valve
• 2.8 L removable water tank
• Removable cup-warming surface
• Only 250 mm wide

Technical Specifications

• Brand: ECM
• Model: Mechanika Slim PID
• Manufacturer Item Number: CM100006-00
• Machine Type: Semi-Automatic Espresso Machine
• Heating System: Heat Exchanger
• Number of Boilers: 1
• Boiler Material: Stainless Steel
• Boiler Capacity: Approx. 1.9 L
• PID Control: Yes
• Temperature Settings: 120°C / 124°C / 128°C
• Pre-Infusion: Selectable ON / OFF
• ECO Mode: Selectable ON / OFF
• Shot Timer: Yes
• Display: Yes
• Pump Type: Low-Noise Vibration Pump
• Brew Group: ECM Brew Group
• Valve Type: Rotary
• Water Tank Capacity: Approx. 2.8 L
• Direct Water Connection: No
• Pump Pressure Gauge: Yes
• Boiler Pressure Gauge: Yes
• Adjustable Expansion Valve: Yes
• Cup-Warming Surface: Removable
• North American Voltage: 115 V
• Frequency: 60 Hz
• Power: 1,400 W
• Width: 250 mm / 9.84 in
• Depth Without Portafilter: 445 mm / 17.52 in
• Depth With Portafilter: 565 mm / 22.24 in
• Height: 395 mm / 15.55 in
• Weight: 20.2 kg / 44.5 lb

What’s Included

• ECM Mechanika Slim PID espresso machine
• 1 single-spout portafilter
• 1 double-spout portafilter
• 1 single-shot 7 g filter basket
• 1 double-shot 14 g filter basket
• 1 blind filter basket
• 1 tamper
• 1 cleaning brush
• User manual

Ideal For

• Home espresso enthusiasts
• Customers who want strong milk-steaming performance
• Cappuccino and latte drinkers
• Customers with limited counter width
• Users upgrading from a single-boiler machine
• Home baristas who want PID control with a traditional machine layout

Frequently Asked Questions

1. Is the ECM Mechanika Slim PID a dual-boiler machine?

No. It uses a single 1.9 L stainless-steel boiler with a heat exchanger system.

2. Can it brew espresso and steam milk in the same workflow?

Yes. The heat exchanger system allows brewing and steaming without the temperature-switching workflow required by a traditional single-boiler machine.

3. Does it have PID temperature control?

Yes. The PID electronically controls boiler temperature.

4. What temperature settings are available?

The Mechanika Slim PID provides three selectable boiler temperatures: 120°C, 124°C and 128°C.

5. Does the display show shot time?

Yes. The display shows the duration of the espresso extraction in seconds.

6. Does it count the total number of shots?

ECM describes the function as an espresso extraction timer or shot counter, meaning it displays extraction duration rather than serving as a cumulative lifetime shot counter.

7. Does it have pre-infusion?

Yes. Pre-infusion can be switched on or off through the machine settings.

8. Does it have an ECO mode?

Yes. ECO mode can be activated or deactivated.

9. What type of pump does it use?

It uses ECM’s low-noise vibration pump.

10. How large is the boiler?

The stainless-steel heat exchanger boiler holds approximately 1.9 litres.

11. How large is the water tank?

The removable reservoir holds approximately 2.8 litres.

12. Can it be connected directly to plumbing?

No. ECM lists the Mechanika Slim PID as a reservoir-fed machine rather than a direct-plumb model.

13. Can brewing pressure be adjusted?

Yes. The expansion valve is easily accessible for pressure adjustment.

14. How wide is the machine?

The Mechanika Slim PID is only 250 mm, or approximately 9.84 inches, wide.

15. What electrical supply does the Canadian version use?

The North American model is rated at 115 V, 60 Hz and 1,400 W.

16. Are both single- and double-spout portafilters included?

Yes. ECM includes one single-spout and one double-spout portafilter.

17. Is a blind basket included for backflushing?

Yes. A blind filter basket is included for compatible cleaning procedures.

18. Who is this machine best suited for?

It is especially well suited to home baristas who want a traditional heat-exchanger workflow, strong steam capability, PID control and premium build quality in a narrow footprint.
